Installation of the distribution box housing

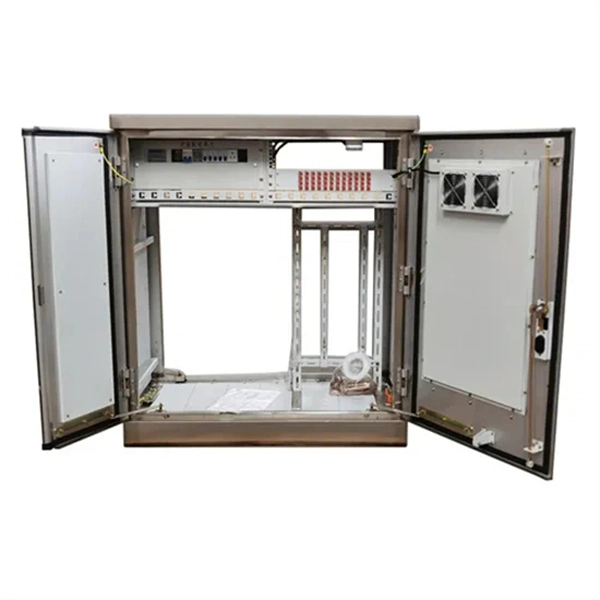

Proper installation of a home distribution box ensures safe, organized, and efficient electrical distribution throughout the house.Choosing the Right Distribution BoxSelect a distribution box based on load capacity, environment, and durability. For indoor residential use, plastic or steel enclosures are common, with steel offering durability and plastic being lightweight. Check the IP or NEMA rating to ensure protection against dust and moisture, especially if the box is near humid areas or outdoors. Ensure the box has enough space for current wiring and future expansion .Placement and AccessibilityInstall the distribution box in a dry, ventilated, and easily accessible location, typically around 1.5 meters above the floor for residential setups. Avoid areas near water, flammable, explosive, or corrosive substances. Leave sufficient space around the box for maintenance and ventilation. Outdoor installations may require rain covers, cooling fans, or dehumidifiers .Wiring and ComponentsA distribution box contains the main switch, circuit breakers, RCDs, busbars, and neutral/earth bars. Proper wiring involves:Neatly laying cables using conduits or trays to avoid sharp bends.Connecting busbars securely with correct torque settings.Installing circuit breakers for each circuit and labeling them clearly.Placing the RCD near the main switch for leakage protection.Ensuring proper earthing by connecting the earth bar to grounding electrodes .Safety MeasuresPower Isolation: Always cut off power before installation or maintenance.Personal Protection: Use insulating gloves, safety glasses, and slip-resistant shoes.Compliance: Follow local electrical codes (NEC, IEC, or regional standards) and use UL/CE-certified components.Testing: Perform visual inspections and multimeter tests before powering on .Maintenance and LabelingLabel all circuits clearly for easy identification. Schedule regular inspections and maintenance to ensure long-term reliability. Consider modular designs for easier future upgrades .SummaryInstalling a distribution box correctly involves selecting the right box, placing it safely, wiring it properly, incorporating protective devices, and adhering to safety standards. Following these steps ensures efficient power distribution, reduces fire hazards, and allows for safe maintenance and future expansion .
