Resistance values ​​of distribution box ABC

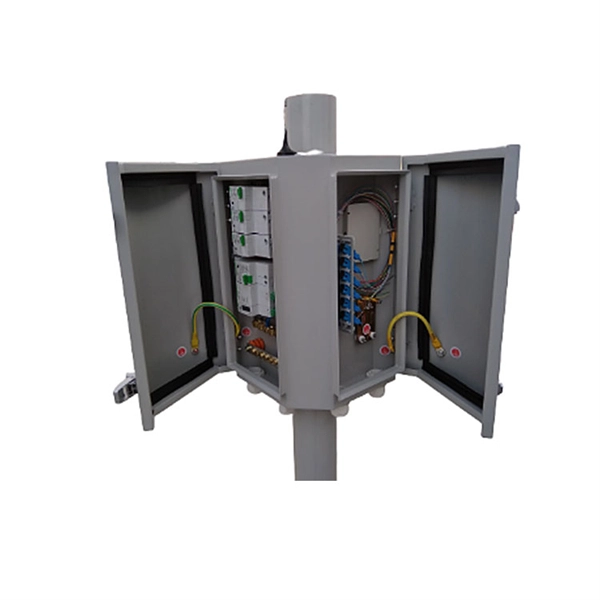

The exact resistance of an ABC distribution box is not typically specified, but it depends on the materials and design of the terminals and busbars.Factors Affecting ResistanceThe electrical resistance of an ABC distribution box is primarily determined by:Terminal and busbar material: Most ABC boxes use EC grade copper busbars and electro-tin plated terminals, which have very low resistivity, ensuring minimal voltage drop and high conductivity .Connection type: Terminals often feature serrated bores and compression lugs to improve contact and reduce resistance .Cable size compatibility: Boxes are designed for incoming conductors up to 120mm² and service cables up to 35mm², with larger cross-sectional areas reducing resistance .Environmental protection: Boxes are made from fire-retardant, UV-resistant SMC or PBT/ASA materials, which do not conduct electricity, so resistance is only relevant at the metallic contact points .Maintenance and corrosion prevention: Grease-filled bores and anti-rust stainless steel springs maintain low resistance over time, even in harsh conditions .Typical Electrical CharacteristicsCurrent rating: Most ABC distribution boxes are rated for 200A, which implies that the internal resistance is low enough to safely carry this current without significant heating .Voltage rating: Designed for low voltage distribution networks, typically up to 1 kV AC, with insulated terminals to prevent leakage .Ingress protection: IP53 or IP43 ratings ensure that moisture and dust do not increase contact resistance .Practical ImplicationsWhile the exact resistance in ohms is not usually provided, for design purposes, it is generally assumed to be negligible compared to the conductor resistance. The focus is on ensuring secure, corrosion-free connections and adequate conductor sizing to handle the rated current safely. In summary, the resistance of an ABC distribution box is very low due to high-conductivity copper busbars and well-designed terminals, but precise numerical values are not typically published in manufacturer datasheets .
