Optical Module Interface

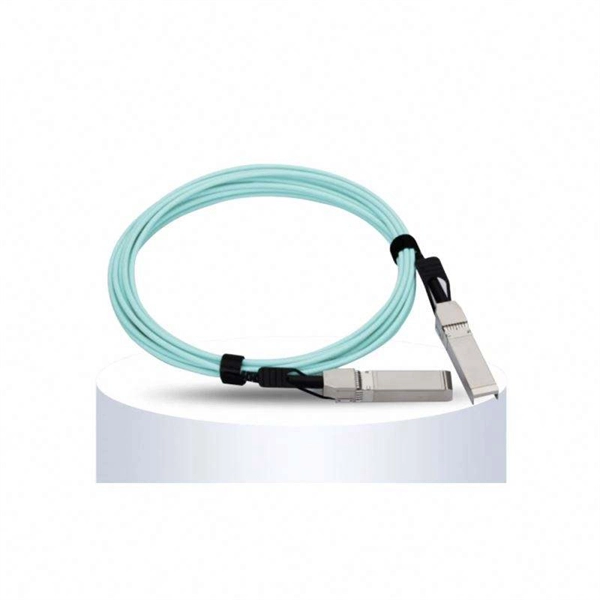

An optical module interface is the electrical and optical connection standard that allows an optical transceiver to convert electrical signals to optical signals and vice versa, enabling high-speed data communication.OverviewAn optical module is a hot-pluggable transceiver used in fiber optic communication systems to bridge electrical equipment and optical fibers. It operates at the physical layer of the OSI model, performing optoelectronic conversion: converting electrical signals from a system into optical signals for transmission over fiber, and converting received optical signals back into electrical signals for the system . The interface of an optical module consists of two main parts:Electrical interface: Connects the module to the host system, typically following standards defined by multi-source agreements (MSAs) or the Common Electrical Interface (CEI) from the Optical Internetworking Forum (OIF), .Optical interface: Connects the module to the fiber optic network, allowing light signals to be transmitted and received.Components of the InterfaceTransmitter Optical Sub-Assembly (TOSA): Converts electrical signals into optical signals using a laser diode (LD) or LED. It includes a driver chip, optical interface, monitoring photodiode, and housing. An automatic power control (APC) circuit ensures consistent optical output .Receiver Optical Sub-Assembly (ROSA): Converts incoming optical signals back into electrical signals using a photodetector and preamplifier, providing the system with a usable electrical output .Functional circuits and PCBA: Manage signal processing, modulation, and monitoring within the module.Standards and Form FactorsOptical module interfaces are standardized to ensure interoperability:SFP (Small Form-factor Pluggable): Compact, hot-pluggable module supporting up to 4 Gbps .SFP+: Enhanced version supporting 10 Gbps.XFP: 10-Gigabit module with XFI electrical interface .SFP28 and QSFP: Higher-speed modules for 25 Gbps and multi-channel applications . The electrical interface defines how the module communicates with the host system, while the optical interface defines the fiber connection type (single-mode or multi-mode) and wavelength. These interfaces are critical for ensuring signal integrity, low latency, and high bandwidth in data centers, telecom networks, and high-performance computing environments .SummaryThe optical module interface is essential for connecting electronic systems to optical networks. It ensures reliable electrical-to-optical and optical-to-electrical conversion, supports standardized form factors and electrical specifications, and enables high-speed, low-latency communication across fiber optic networks .
